Lightbulb BMW M3 / M4 Brake Systems: Deep Dive and Interview

BIMMERPOST NEWS
BMW M3 / M4 Brake Systems: Deep Dive and Interview
111
COMMENTS

The following comes courtesy of M-Power.com.

Also see:
BMW M3 and BMW M4 Inside (part 1): The new M Servotronic.
BMW M3 and BMW M4 Inside (part 2): The Brake Systems.
BMW M3 and BMW M4 Inside (part 3): The new engine.
BMW M3 and BMW M4 Inside (part 4): Sound and Exhuast System.
BMW M3 and BMW M4 Inside (part 5): smartly light, rigid, precise.
BMW M3 and BMW M4 Inside (part 6): The new chassis.
BMW M3 and BMW M4 Inside (part 7): The Active M differential.


BMW M3 and BMW M4 Inside (part 2): The new brake systems.
Interview with M engineer Klaus Dullinger.

April 11, 2014

Name:  Screen Shot 2014-04-12 at 10.01.17 AM.jpg
Views: 19729
Size:  63.6 KB
M engineer Klaus Dullinger is responsible for the development of the new BMW M3 and BMW M4 brake systems.


The BMW M3 and BMW M4 both feature a new type of brake system. Let us begin with the M compound brakes – what is special about them and in what ways do they differ from the M compound brakes installed in the previous model?

Klaus Dullinger: M compound brakes have a grey-cast friction ring in a floating arrangement that is connected by pins to the aluminium brake cover. The pin assembly means that as the temperature increases, it is able to expand freely in a radial direction and subsequently cool down again without any residual deformation. This connecting system has been in used since the second generation of the BMW M3.

What is different about the new BMW M3 and BMW M4 is that fixed-calliper brakes are now fitted to the front and rear axles, with four pistons at the front and two at the rear. The predecessor had heavy single-piston sliding callipers.

Name:  m3-m4-brakes1.jpg
Views: 19760
Size:  271.2 KB

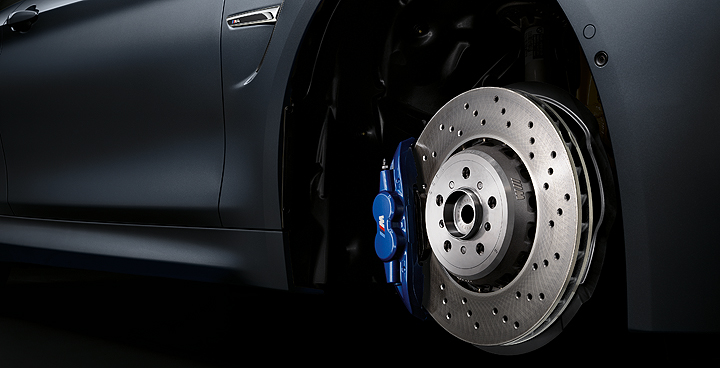

M compound brakes of the new BMW M3 and BMW M4.


Is it necessary to allow M compound brakes a running-in period when the components are new?

Yes. Drivers should be more restrained in their driving for the first tank full of fuel and avoid maximum deceleration wherever possible.

What happens in these first 500 kilometres?

It concerns the so-called 'bedding' of the brake linking on the friction ring: it is necessary for the two surfaces to become adjusted to each other. Moreover, the 20 m thick cross hatch of new brake discs wears away, which promotes the bedding of the new brake pad on the new disc.

Name:  m3-m4-brakes2.jpg
Views: 19536
Size:  233.8 KB
Friction ring of the M compound brakes.


Why is it that with perforated brake discs in particular, you occasionally see slight cracks?

Cracks form in particular wherever relatively cold discs are suddenly subjected to a large load. The cracks that occur are limited to the surface areas. For instance, if you have been driving your car fully laden on the motorway for an extended period without braking and then you are suddenly called upon to perform an emergency braking manoeuvre, the brake disc will become very hot in a very short space of time – in such a case, the temperature can increase from around 20 degrees to 450 degrees. If the brake disc is required to perform in this manner several times in rapid succession, it is quite possible for surface cracks to form in the cast material of the friction ring – especially in the area around the perforation holes. In sports cars, cracks like these are, more than anything, a sign that they are being subjected to the use for which they were designed, and they have no negative effect on the service life of the brake disc or its braking performance. When it is time to change the brake pad, it is also necessary for the car dealer to inspect the brake disc.

Will racing pads again be available for the M compound brakes of the new BMW M3 and BMW M4?

Yes, a new sport pad will be available under the name of 'M Performance Sport Brake Pad'; this was developed directly alongside the new brakes.

What are the advantages and disadvantages of these sport pads?

The life expectancy of these pads is considerably longer at the kinds of high temperatures that typically occur on the racetrack. While the standard pad can display a drop in friction coefficient at high temperatures, known as fading, the friction coefficient value of sport pads is far more stable.

In general, operational noise can be generated with any high-performance brake under certain driving conditions. However, with sport pads, we do without any form of comfort factor in the car components, which means that considerable braking noise is simply a fact of life for people who choose to use them.

Sport pads are more expensive and act considerably more fiercely on the brake discs. Disc wear is several times higher than that of standard brake pads. Which is why we require that every time a set of sport pads is fitted, new discs also have to be installed. For this reason, we will be offering sport pad kits, consisting of the actual pads plus the required brake discs.

Why is it so important to perform a cooling-down lap after driving on the racetrack?

It is very important for the material in the brake components to have time to cool down in an air stream. If you park your car while temperatures of 500 degrees are still prevailing on the brake discs, the considerable heat will be transferred throughout the entire brake system. And the brake pads too will absorb energy from the hot brake discs. The heat transfer progresses through the back plate and damping plates of standard pads into the brake callipers. In addition to the damping layer of the damping plates, the piston seals and dust shields can also be damaged, as can the surface coating of the brake callipers. Leaving brakes to cool in a stationary position is extremely unfavourable when brake discs are at a temperature of up to 500 degrees. By performing a cooling-down lap, the brake temperature generally falls to below 200 degrees.

Do such high temperatures occur in normal driving conditions?

No, normally such temperatures do not occur when subjecting a vehicle to normal use. It would be necessary to perform several braking manoeuvres in rapid succession, from full speed to stationary, before such levels would be reached.


M Carbon Ceramic Brakes.

Name:  m3-m4-brakes3.jpg
Views: 18579
Size:  320.4 KB
19" M carbon ceramic brake discs with six-piston calliper on the front axle.

Name:  m3-m4-brakes4.jpg
Views: 18729
Size:  281.2 KB

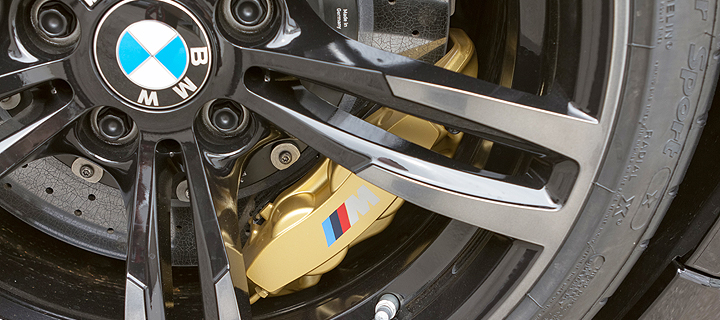

19" M carbon ceramic brake discs with four-piston calliper on the rear axle.


M carbon ceramic brakes are also available for the first time for the new BMW M3 and BMW M4. What are the advantages of these brakes?

The rotating masses in M carbon ceramic brakes are around 12.5 kg lighter compared with standard M compound brakes.

On the other hand, these brakes are dimensioned to offer significantly more in terms of performance. In other words, instead of 18“ M compound brakes, we fit 19“ M carbon ceramic brake discs. We deploy a six-piston calliper on the front axle and a four-piston fixed-calliper brake on the rear axle. The operational surfaces of the brake pads are appreciably higher. This means that the M carbon ceramic brake offers a considerable advantage in terms of performance. So on the racetrack in particular, the M carbon ceramic brake offers more stability.

A further advantage is that the disc is not so susceptible to corrosion, which means that no rust films form on the friction ring, a phenomenon that is well known in grey-cast constructions.

With conventional brake discs, corrosion is more likely to occur with low mileages, long idle periods and low usage, because the minimum load level required to initiate the disc brake's self-cleaning mechanism is not attained. Corroded brake discs generate a rubbing effect when the brakes are applied, which in the majority of cases can no longer be removed.

However, this does not occur with M carbon ceramic brakes, since they do not have a problem with corrosion.

Name:  m3-m4-brakes4.jpg
Views: 18729
Size:  281.2 KB
Already in new condition - due to the different material compositions of friction layer and disc body - the friction surfaces are covered wih an distinctive stress reliving structure.


Furthermore, they are less subject to wear. The brake pads wear more slowly, and under normal use, the carbon ceramic brake disc will last as long as the car itself; the silicon carbide friction coating is virtually non-wearing. However, on the racetrack, the brake discs may be subject to oxidative wear. When the discs are repeatedly heated to temperatures of 600 degrees and over, the fibres within the brake disc burn up.

Name:  m3-m4-brakes6.jpg
Views: 18280
Size:  265.5 KB

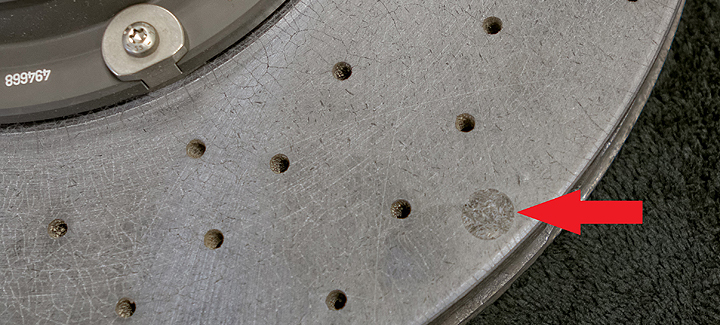

Wear indicator.


This means that the disc does not become progressively thinner but lighter. To detect the level to which this may have occurred, three wear indicators per friction coating are applied to the disc, set apart at angles of 120 degrees. This allows the dealer to recognise when discs have been subjected to high levels of oxidative wear. The brake pad service team then takes out the brake disc and weighs it. If it weighs less than the minimum permitted weight, the disc must be replaced.

Name:  Screen Shot 2014-04-12 at 10.48.44 AM.jpg
Views: 18228
Size:  134.9 KB
Minimum permitted weight.


Are there any disadvantages with carbon ceramic brakes?

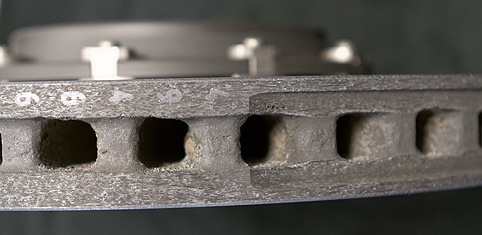

The production process is much more complex. One step involves siliconising the friction ring for a period of 24 hours at 1,300 degrees.

The carbon fibre-reinforced silicon-carbide brake disc has a total throughput time of several weeks with the manufacturer before it is ready.

This explains why the purchase price of the M carbon ceramic brake is that much higher. However, this is partly balanced out by the lower level of wear.

Name:  m3-m4-brakes7.jpg
Views: 18105
Size:  42.5 KB


This system does have a number of special characteristics, of which you should be aware:

Brake discs and brake pads in M carbon ceramic brakes only achieve a favourable wear and contact pattern after around 1,000 km.

Material-specific properties mean that increased operational noise may be experienced when braking, particularly in wet conditions, just before the vehicle comes to a halt. However, this does not affect the brakes' performance, operational safety or stability.

It is a good idea to clean both brake discs and callipers with a steam jet or high-pressure cleaner before putting the vehicle through an automatic car wash or washing bay facility, to avoid the formation of encrustations or deposits of, for example, salt crystals, when the car stands stationary after cleaning. The cleaning effect of such automatic washing systems in the vehicle's wheel areas is generally not sufficient to ensure this. As with all brake systems, it is important to ensure that any rim cleaner used is only applied to the wheel rims.

Name:  Screen Shot 2014-04-12 at 10.52.24 AM.jpg
Views: 18024
Size:  111.0 KB

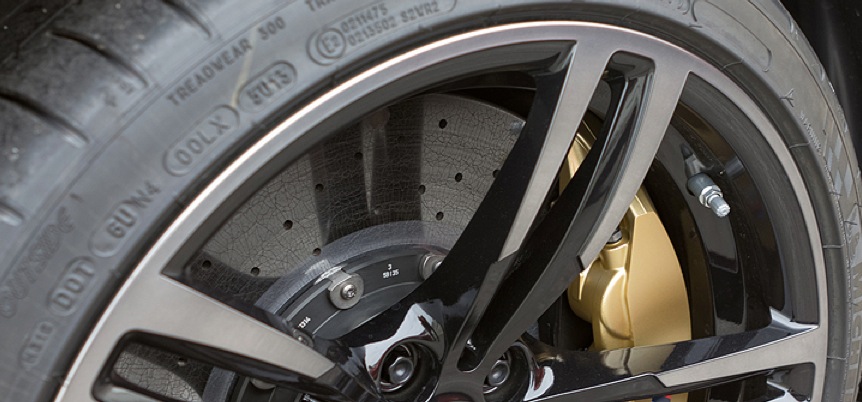

Rim cleaner should be applied to the wheel rims only.


If the brake disc and pads become wet, all brakes undergo a drop in their friction coefficient. M carbon ceramic brakes normally have a considerably higher coefficient of friction than conventional brakes, and they feel considerably fiercer in operation. However, under the impact of moisture and road salt, for example after using a car wash, or when condensation has formed overnight, the braking effect may be equivalent to that of a conventional brake system. This may be perceived as reduced braking performance, but it can be compensated for by applying more pressure with the brake pedal; this should be continued until the pads and discs have fully dried out. Since the difference in frictional coefficient between dry and wet brakes is higher than normal with M carbon ceramic brakes, it is felt all the more clearly by the driver.

Which brakes would you personally choose?

The M compound brakes are fantastic but the M carbon ceramic brakes offer even higher performance. I would personally go for the M carbon ceramic brakes, despite the higher price.

Jason is offline   United_States
0
Reply With Quote
      04-12-2014, 02:59 PM   #2
Suave
Major

Suave's Avatar

Drives: 2015 F80 M3
Join Date: Aug 2013
Location: Montgomery County, PA

Posts: 1,298
iTrader: (0)

Highly Informative post. I did learn a few things about brake care and warm up/ cool down I was never quite clear on, thanks.
Suave is offline   United_States
0
Reply With Quote
      04-12-2014, 03:00 PM   #3
damnitBobby
Second Lieutenant

Drives: '07 Nissan 350Z 6MT
Join Date: Jan 2014
Location: Houston

Posts: 268
iTrader: (0)

interesting read
damnitBobby is offline
0
Reply With Quote
      04-12-2014, 03:02 PM   #4
curehead
Private First Class

Drives: F80 M3
Join Date: Jan 2014
Location: Luxembourg

Posts: 158
iTrader: (0)

Good article. Thanks!
curehead is offline   Luxembourg
0
Reply With Quote
      04-12-2014, 03:14 PM   #5
pb12
Private

Drives: 911
Join Date: May 2011
Location: PDX

Posts: 98
iTrader: (0)

Helpful article, thanks for posting.

I would have like to know if there will be a sport pad for the CCB's like the one mentioned for the conventional brakes

m
pb12 is offline
0
Reply With Quote
      04-12-2014, 03:17 PM   #6
ss134
Brigadier General

ss134's Avatar

Drives: ...a hard bargain...
Join Date: Feb 2009
Location: Germany/UK

Posts: 3,728
iTrader: (1)

Great read as always. What is covered in part 3 of the deep dive and when can we expect it?!
__________________
2014 AW F80 M3 DCT
2011 AW E90 M3 DCT - Sold
2010 JZB E90 M3 DCT - Sold
2009 6MT E90 LCI 335i M -Sport - Sold
ss134 is offline   United Kingdom
0
Reply With Quote
      04-12-2014, 03:52 PM   #7
Fifth Echelon
Private First Class

Fifth Echelon's Avatar

Drives: Public transport!
Join Date: Apr 2014
Location: Austin, TX

Posts: 102
iTrader: (0)

I am curious: what would be the best way to bed in brakes on a new F82?
__________________
Waiting on: 2015 F82 BMW M4 DCT | Sakhir Orange/Black Full Leather | ED completed 8/14, waiting on redelivery
Current: The wife's Cadillac ATS 2.0T Luxury / Public Transport / My own two feet
Past: 2009 E93 BMW 335i Convertible | Black Sapphire Metallic/Black Extended Leather
Past: 2005 Mercedes SLK350 | Silver/Blue
Fifth Echelon is offline
0
Reply With Quote
      04-12-2014, 04:10 PM   #8
BlackCobra08
King Cobra

BlackCobra08's Avatar

Drives: 15' 6MT M3
Join Date: Mar 2014
Location: MN

Posts: 288
iTrader: (0)

These are Brembo calipers correct?
BlackCobra08 is offline
0
Reply With Quote
      04-12-2014, 04:14 PM   #9
Kuwen
Private First Class

Drives: 2015 M3 6MT
Join Date: Feb 2012
Location: Canada

Posts: 140
iTrader: (0)

Quote:
Originally Posted by ss134
Great read as always. What is covered in part 3 of the deep dive and when can we expect it?!
I second that, these are excellent articles.
Kuwen is offline
0
Reply With Quote
      04-12-2014, 04:47 PM   #10
M4TW
///M Uber Alles

M4TW's Avatar

Drives: '15 MW M4
Join Date: Dec 2006
Location: GSA

Posts: 1,441
iTrader: (1)

Quote:
Which brakes would you personally choose?

The M compound brakes are fantastic but the M carbon ceramic brakes offer even higher performance. I would personally go for the M carbon ceramic brakes, despite the higher price.
It would sure be a kick in the teeth to these CCB's if the guy responsible for developing them didn't come to this conclusion. I can't argue the additional costs but I still don't see the additional value at that price point. I'd be in at $4 K though. But I confess - mainly for dah bling. Hopefully, the production costs will come down on these. For that to happen, they need more adopters. Catch-22.
__________________
die Welt ist meine Auster
2015 M4, MW, Black Full Merino, DCT, CCB, Adaptive M Suspension, Premium, Executive. Technology, ConnectedDrive, CF Trim, Convenience Telephony, European Delivery
M4TW is online now   Canada
0
Reply With Quote
      04-12-2014, 05:07 PM   #11
Tonymiabmw
Lieutenant Colonel

Tonymiabmw's Avatar

Drives: YMB F80 CCBs
Join Date: Oct 2013
Location: Brickell

Posts: 1,987
iTrader: (1)

Several weeks to manufacture the CCBs huh? Makes sense why the CCBs for the M3 are delayed.
Tonymiabmw is offline
0
Reply With Quote
      04-12-2014, 05:28 PM   #12
Cuz5150
Major

Cuz5150's Avatar

Drives: 06-M3ZHP/04-M3 Vert/02Duc998
Join Date: May 2008
Location: NJ

Posts: 1,251
iTrader: (0)

Ok Ok Ok.........got a question. Let say 3-4 years from now at the dealership lot.

One used M3/M4 with Ceramic brakes vs. One used M3/M4 with OUT Ceramic brakes.........

Does the one WITH Ceramic brakes cost $8,000 more?

I ask this because in the used/pre-own market, options don't worth $hit.
The auctions don't give a rats a$$ about ceramics............
__________________
-Diplomacy is saying, "nice doggie while trying to find a rock"-

04-M3 vert-Black/Imolla/6MT/Cold/Xenon/HK/
06-M3 Cp-Mystic/Black/6MT/Comp/Xenon/HK/
09-135i- AW/Bk-Lette/6MT/M-pac/Nav/Hi-Fi/Usb-Ipod/SOLD
Cuz5150 is offline
0
Reply With Quote
      04-12-2014, 05:29 PM   #13
REP1KRR
My other car is a Scooter'ia

REP1KRR's Avatar

Drives: M3 Saloon
Join Date: Nov 2006
Location: Salt Lake City

Posts: 1,275
iTrader: (8)

Quote:
Originally Posted by Jason View Post
In other words, instead of 18 M compound brakes, we fit 19 M carbon ceramic brake discs.
I don't get it?!? 18" and 19"? 457mm vs. 482mm?
REP1KRR is offline
0
Reply With Quote
      04-12-2014, 05:31 PM   #14
GoodandEvil
Private

Drives: 2013 M5 MCB
Join Date: Sep 2013
Location: Toronto

Posts: 62
iTrader: (0)

Interesting, I hope M5 have the same rear brake calliper
GoodandEvil is offline
0
Reply With Quote
      04-12-2014, 06:03 PM   #15
hwelvaar
Major

Drives: BMW M135i MT
Join Date: Jan 2008
Location: Belgium

Posts: 1,071
iTrader: (0)

Quote:
Originally Posted by REP1KRR View Post
I don't get it?!? 18" and 19"? 457mm vs. 482mm?
No, it means you need minimum 18" or 19" rims to be able to fit that specific braking system.
hwelvaar is offline   Belgium
0
Reply With Quote
      04-12-2014, 06:16 PM   #16
remmib
General

remmib's Avatar

Drives: 2013 F10 520d M-Sport
Join Date: Feb 2006
Location: Norway

Posts: 26,139
iTrader: (0)

Quote:
Originally Posted by REP1KRR View Post
I don't get it?!? 18" and 19"? 457mm vs. 482mm?
No, they're not that large, but I guess it means you need 18" or 19" wheels.
__________________

F10 520d M-Sport Alpine White | HRE P43SC 20x9+20x11 | Michelin PSS 255/35+295/30 | KW V3 Coilover | M5 Front Sway Bar + M550d Rear Sway Bar | 3D Design Front Lip | BMW M Performance CF Spoiler | BMW M Performance Diffuser | BMW M Performance Black Grills | BMW M Performance Pedals |
remmib is offline   Norway
0
Reply With Quote
      04-12-2014, 06:36 PM   #17
JS919
Second Lieutenant

JS919's Avatar

Drives: M4 & i3
Join Date: Apr 2010
Location: Henderson, NV

Posts: 277
iTrader: (0)

Quote:
Originally Posted by Cuz5150 View Post
Ok Ok Ok.........got a question. Let say 3-4 years from now at the dealership lot.

One used M3/M4 with Ceramic brakes vs. One used M3/M4 with OUT Ceramic brakes.........

Does the one WITH Ceramic brakes cost $8,000 more?

I ask this because in the used/pre-own market, options don't worth $hit.
The auctions don't give a rats a$$ about ceramics............
First off, a base car with no options isn't going to be worth anywhere near what it cost new after 3 - 4 yrs. What your asking is the CCB not going to depreciate? Well of course it is, every option as well as the car is going to depreciate. So your point don't worth shit to me . Second, if you lease, the options & the base car depreciate at the same rate. Since I plan on leasing for 3 years the CCB option won't cost me $8000. If the CCB option don't worth shit after 3 yrs that's BMW's problem not mine.
__________________
Current BMWs - 2015 M4 Mineral Gray/Silverstone - 2014 Capparis White i3
Past BMWs - 2008 M3 Coupe - 2009 M3 Coupe - 2011 1-Series M - 2012 335is - 2013 M5 - 2013 M6 - 2014 M5 Competition Package - 2014 M235i

Last edited by JS919; 04-12-2014 at 06:41 PM.
JS919 is online now   United_States
0
Reply With Quote
      04-12-2014, 06:36 PM   #18
avlnch
Lieutenant Colonel

Drives: 2013 Individual M5
Join Date: Jul 2007
Location: South FL

Posts: 1,572
iTrader: (0)

Quote:
Originally Posted by Fifth Echelon
I am curious: what would be the best way to bed in brakes on a new F82?
To bed in compound brake system

http://f10.m5post.com/forums/showpos...1&postcount=30
__________________
2013 BMW INDIVIDUAL ///M5 {Frozen Black/Amaro Brown/Amaro Brown Alcantara/White Contrast Stitching/Piano Black Trim}
avlnch is offline
+1
Reply With Quote
      04-12-2014, 06:42 PM   #19
Hedoniste
Lieutenant

Hedoniste's Avatar

Drives: M3 & X1
Join Date: Feb 2009
Location: Blablaille

Posts: 576
iTrader: (0)

Garage List
2015 BMW M3  [0.00]
Nice article.
I have M perf brake kit on my E92. It is a great upgrade! I will probably do it again on my F80 even if there is a lot of squeal.
__________________
2015 BMW M3 DCT (AW/FSO)
Previous M's:
2011 BMW M3 Coupe 6MT ZCP
2007 BMW M Coupe
Hedoniste is offline
0
Reply With Quote
      04-12-2014, 06:54 PM   #20
aussiem3
Lieutenant Colonel

aussiem3's Avatar

Drives: Goggomobil
Join Date: Jul 2007
Location: Kangaroo land

Posts: 1,612
iTrader: (1)

Garage List
2014 BMW X5 30d  [0.00]
2007 E92 M3  [0.00]
Very good interview nevertheless stating the obvious.
__________________

2007 E92 6MT - Silverstone II with /// Performance Exhaust with ACM Test Pipes and BPM Sport Stage II Dev-Tune - Proper engine warm up, 12-monthly oil change, Castrol TWS 10w-60
2014 F15 X5 3.0d
aussiem3 is offline   Australia
0
Reply With Quote
      04-12-2014, 07:03 PM   #21
vAnt826
Major

Drives: E92 M3
Join Date: Nov 2006
Location: Seattle

Posts: 1,418
iTrader: (3)

Quote:
Originally Posted by JS919 View Post
First off, a base car with no options isn't going to be worth anywhere near what it cost new after 3 - 4 yrs. What your asking is the CCB not going to depreciate? Well of course it is, every option as well as the car is going to depreciate. So your point don't worth shit to me . Second, if you lease, the options & the base car depreciate at the same rate. Since I plan on leasing for 3 years the CCB option won't cost me $8000. If the CCB option don't worth shit after 3 yrs that's BMW's problem not mine.
Right, if you are leasing the car this isn't too much of a problem.

If you are financing, I find it very unlikely that the $8k you just spent will be recognized in the car's value after a few years. I think it may be worth $2k after 3 years (guess).
vAnt826 is offline
0
Reply With Quote
      04-12-2014, 07:24 PM   #22
Lemon Jelly M3
Lieutenant

Lemon Jelly M3's Avatar

Drives: M3 (E90,ZCP,6MT)
Join Date: Oct 2009
Location: East Coast

Posts: 478
iTrader: (0)

Very useful info for track junkies
I hope I don't see too many dive bombers on the track
Lemon Jelly M3 is offline   United_States
0
Reply With Quote
Post Reply

Bookmarks

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Forum Jump


All times are GMT -5. The time now is 10:06 PM.




f80post
Powered by vBulletin® Version 3.7.0
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
1Addicts.com, BIMMERPOST.com, E90Post.com, F30Post.com, M3Post.com, ZPost.com, 5Post.com, 6Post.com, 7Post.com, XBimmers.com logo and trademark are properties of BIMMERPOST
